Intelligent Glue Dispensing Equipment with Visual Positioning
Intelligent Glue Dispensing Equipment with Visual Positioning
Intelligent Glue Dispensing Equipment with Visual Positioning
Intelligent Glue Dispensing Equipment with Visual Positioning
Intelligent Glue Dispensing Equipment with Visual Positioning
Intelligent Glue Dispensing Equipment with Visual Positioning

Intelligent Glue Dispensing Equipment with Visual Positioning

Get Latest Price
Payment Type:L/C,T/T
Incoterm:FOB,CFR,CIF,EXW,FAS,FCA
Min. Order:1 Bag/Bags
Transportation:Ocean,Land,Air
Port:SHENZHEN,GUANGZHOU
Product Attributes

Model No.WD-VF4

BrandWELDO

OriginChina-Dongguan

CertificationCE Certificate

Place Of OriginChina

StatusNew

Video Factory InspectionProvided

Mechanical Test ReportProvided

Marketing TypeOrdinary Product

Core Component Warranty Period1 Year

Core ComponentsMotor, Pump, Engine

Warranty Period1 Year

Out-of-warranty ServiceVideo Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service

Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets)Turkey, Brazil, Mexico

Applicable IndustryManufacturing Plant, Printing Shops, Machinery Repair Shops, Food &Amp; Beverage Factory, Energy &Amp; Mining, Other

Showroom Location (in Which Countries Are There Sample Rooms Overseas)Mexico, Brazil, Turkey

Running DistanceX:400mm, Y:300mm,Z:60mm

Camera Working SizeX:400mm, Y:300mm

Size Of Machine108*135*190cm

Power220V ,50/60HZ,3KW

CCD Resolution20 million pi

Packaging & Delivery
Selling Units : Bag/Bags
Package Type : Standard Export Wooden Case
Picture Example :

The file is encrypted. Please fill in the following information to continue accessing it

Vision silicone dispensing machine
Product Description
Intelligent glue dispensing equipment with Visual Positioning
--Vision Positioning for More Accurate Dispensing

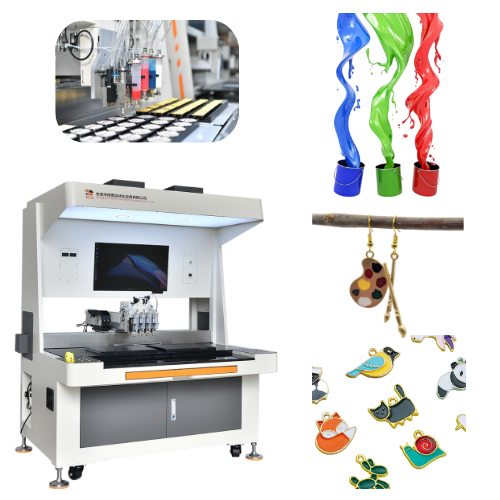

Intelligent Glue dispensing equipment with Visual Positioning is a Visual Dispensing Machine designed for coloring various small accessories and craft products. It can apply surface paint to a wide range of products such as hardware accessories, cultural and commemorative items, wearable nail art, metal badges, clothing zipper heads, fashionable hair clips, and sports medals.
By precisely controlling the amount of paint through Weldo's glue dispensing systems, the paint can be evenly applied/covered on the surface of the products, achieving a uniform color application, a full and smooth paint coating, and consistent color effects.
In response to the numerous production difficulties of the traditional Baked Paint process, WELDO has made significant upgrades to this Visual Dispensing Machine.
This automatic hot glue dispenser features a hard marble base and aluminum steel construction, which can effectively bear weight and prevent movement during operation, thus maintaining precision.
The Y-axis module adopts the principle of stability in a triangle shape. Three triangular shapes are designed inside for support, significantly increasing the strength of the module and reducing the possibility of deformation. This also lowers the likelihood of slight deformation of the Glue Dispenser Machine during high-speed operation.
It is difficult to repair the damage of traditional paint products, and it is difficult to repair the damage locally after the overall curing.
The Baked Paint Dispensing Machine of WELDO uses a suspended jet valve dispensing method, with a combination of solenoid valve and cylinder drive structure, uniform high-frequency spray glue, uniform color and full paint coating, reduce less paint, paint leakage, color difference, and reduce production maintenance, product rework and other costs.
Products made by baking are usually associated with a longer production cycle. However, WELDO's Baked Paint Dispensing Machine can be used in conjunction with our hot air oven machine. The machine is equipped with high-temperature-resistant and corrosion-resistant stainless steel materials inside, which can effectively bake the primer at high temperatures. Additionally, through an intelligent adjustable system control, the circulating fan operates in a closed loop, allowing for low-temperature baking of the surface paint, achieving the effect of secondary drying of the baked paint products. This is highly suitable for long-term production needs.
There are also buttons for over-temperature protection and emergency power-off on the outside to ensure the safety of workers during operation.
WELDO's Precision Dispenser can be customized according to your production needs.
Whether you are doing brand customization, or have your own factory, or whatever type of product you are manufacturing, this Glue Dispenser Machine can enhance your products, meet the customized demands of customers, ensure stable production and facilitate the timely delivery of orders.


Product Key Features & Benefits

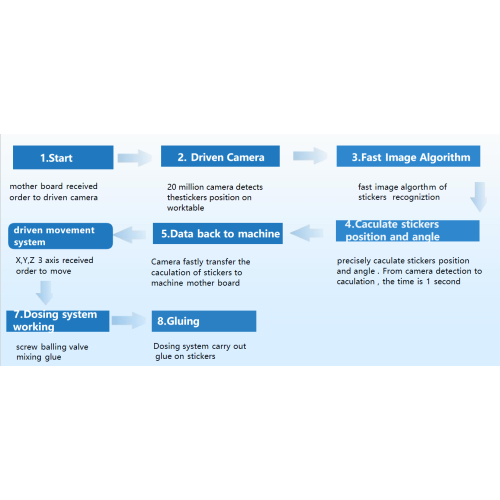

Intelligent Vision Recognition System
High-Precision Non-Contact Jet Dispensing Valve
High-Speed and Stable Dispensing Performance
Clean, Precise, and Consistent Dispensing Results
Wide Fluid Compatibility
Workpieces can be placed randomly on the worktable
visual dispensing machinevisual dispensing machine

Technical Parameter
1. Model: WD600-VF4
2. Colors: 4 colors
3. Standard single worktable size: X:400, Y:300mm
4. CCD resolution:20 million pixels
5. Camera working size: X:400mm, Y:300mm
6. Running Distance:X:400mm, Y:300mm,Z:60mm
7. Table load:100KG
8. Power: 220V ,50/60HZ,3KW
9. Size of machine: 108*135*190cm
10. Heating device temperature :0-50°C
