Reliable Paint Application Machine

Get Latest Price

Payment Type:	L/C,T/T
Incoterm:	FOB,CFR,CIF,EXW,FAS,FCA
Min. Order:	1 Bag/Bags
Transportation:	Ocean,Land,Air
Port:	SHENZHEN,GUANGZHOU

Contact Now

Product Description

Product Attributes

Model No.: WD-VF4

Brand: WELDO

Origin: China-Dongguan

Certification: CE Certificate

Place Of Origin: China

Status: New

Video Factory Inspection: Provided

Mechanical Test Report: Provided

Marketing Type: Ordinary Product

Core Component Warranty Period: 1 Year

Core Components: Motor, Pump, Engine

Warranty Period: 1 Year

Out-of-warranty Service: Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service

Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets): Turkey, Brazil, Mexico

Applicable Industry: Manufacturing Plant, Printing Shops, Machinery Repair Shops, Food &Amp; Beverage Factory, Energy &Amp; Mining, Other

Showroom Location (in Which Countries Are There Sample Rooms Overseas): Mexico, Brazil, Turkey

Running Distance: X:400mm, Y:300mm,Z:60mm

Camera Working Size: X:400mm, Y:300mm

Size Of Machine: 108*135*190cm

Power: 220V ,50/60HZ,3KW

CCD Resolution: 20 million pi

Packaging & Delivery

Selling Units	:	Bag/Bags
Package Type	:	Standard Export Wooden Case
Picture Example	:

The file is encrypted. Please fill in the following information to continue accessing it

button doming making machine



Product Description

Reliable Paint Application Machine

--Machine Vision Driven Precision Dispensing

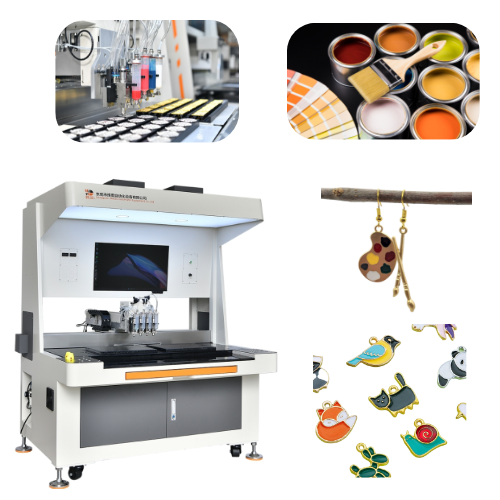

The Reliable Paint Application Machine is a Visual Dispensing Machine designed for coloring various small accessories and craft products. It can apply surface paint to a wide range of products such as hardware accessories, cultural and creative souvenirs, wearable nail art, metal badges, clothing zipper heads, fashionable hair clips, and sports medals.

By precisely controlling the amount of paint through Weldo's glue dispensing systems, the paint can be evenly applied or covered on the surface of the products, achieving a uniform color application, a full and smooth paint coating, and consistent color effects.

This automatic hot glue dispenser is made with a hard marble base and aluminum steel. It can effectively bear weight and prevent movement during operation, thus avoiding a decrease in precision.

The Y-axis module adopts the principle of stability based on triangles. Three triangles are designed inside to provide support, significantly increasing the strength of the module and reducing the possibility of deformation. This also lowers the likelihood of slight deformation of the Glue Dispenser Machine during high-speed operation.

The Baked Paint Dispensing Machine of WELDO has another very practical function, which is to optimize the movement path.

This system will automatically optimize the movement paths for dispensing and placement, reducing unnecessary additional walking paths and improving production efficiency.

Using Baked Paint offers more significant product advantages compared to ordinary spray painting:

1. The product coverage quality is excellent, with rich and uniform colors.

2. The product is highly practical and has a high preservation value.

3. The product has high heat resistance and corrosion resistance.

There are also some limitations when using Baked Paint:

1. The process is complex and requires professional equipment.

Weldo's The Baked Paint Dispensing Machine is a perfect Visual Dispensing Machine that can be fully adapted to the production of Baked Paint. The visual system can automatically locate and identify the product's contour shape, correct deviations, precisely position the product for processing, and reduce the labor costs of enterprises and improve production efficiency.

2. Repairing and maintaining the products is more troublesome.

When products made with Baked Paint are damaged, the handling process is relatively complicated.

Because it is fully cured as a whole, if the product is scratched or damaged, it is difficult to achieve consistent color and glossiness through local repair.

If the product is peeling off the paint, it is necessary to rework the entire piece and re-bake it.

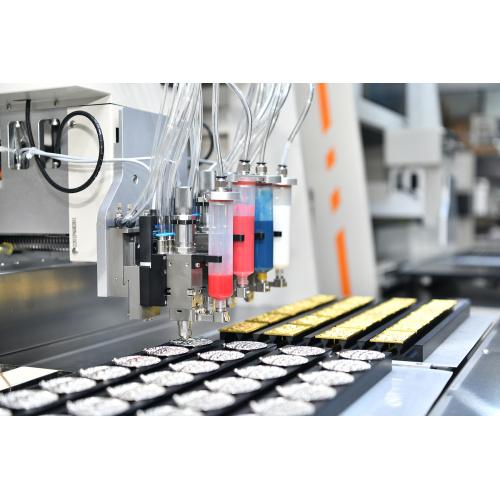

Weldo's The Baked Paint Dispensing Machine uses pneumatic jet valves, which can perform non-contact dispensing on the product. It can perform suspended-point dispensing without touching the product surface, with high-frequency spraying. The dispensing is driven by an electromagnetic valve and a cylinder, making this Visual Dispensing Machine have a long service life and be suitable for factory environments.

3. The production cycle is longer.

The production cycle of products made with Baked Paint is generally longer. The following steps are involved:

Cleaning/Grounding the product - Applying the bottom Baked Paint - Baking - Applying the surface Baked Paint - Baking - Cooling

Each production step requires a certain amount of time control, resulting in a longer cycle.

WELDO's Precision Dispenser can be customized according to your production needs.

Whether you are doing brand customization, or have your own factory, or whatever type of product you are manufacturing, this Glue Dispenser Machine can enhance your products, meet the customized demands of customers, ensure stable production and facilitate the timely delivery of orders.

Technical Parameter

1. Model: WD600-VF4

2. Colors: 4 colors

3. Standard single worktable size: X:400, Y:300mm

4. CCD resolution:20 million pixels

5. Camera working size： X:400mm, Y:300mm

6. Running Distance:X:400mm, Y:300mm,Z:60mm

7. Table load：100KG

8. Power: 220V ,50/60HZ,3KW

9. Size of machine: 108*135*190cm

10. Heating device temperature ：0-50°C

Hot Products

Reliable Zipper and Button Dispensing Machine

Contact Now

Name Badge Making Machine with Exopy Technology

Contact Now

Soft PVC Footwear Logo Making Machine

Contact Now

Efficient Accessory Application Machine

Contact Now

Rubber Keychain Dispensing Machine for Customized Gifts

Contact Now

12 colors rubber keychain making machine

Contact Now

Soft Rubber Keychain Maker for Custom Designs

Contact Now

Home> Products> Visual Dispensing Machine> Baked Paint Dispensing Machine> Reliable Paint Application Machine

Ms. Molly

Leave a message

Contact Now

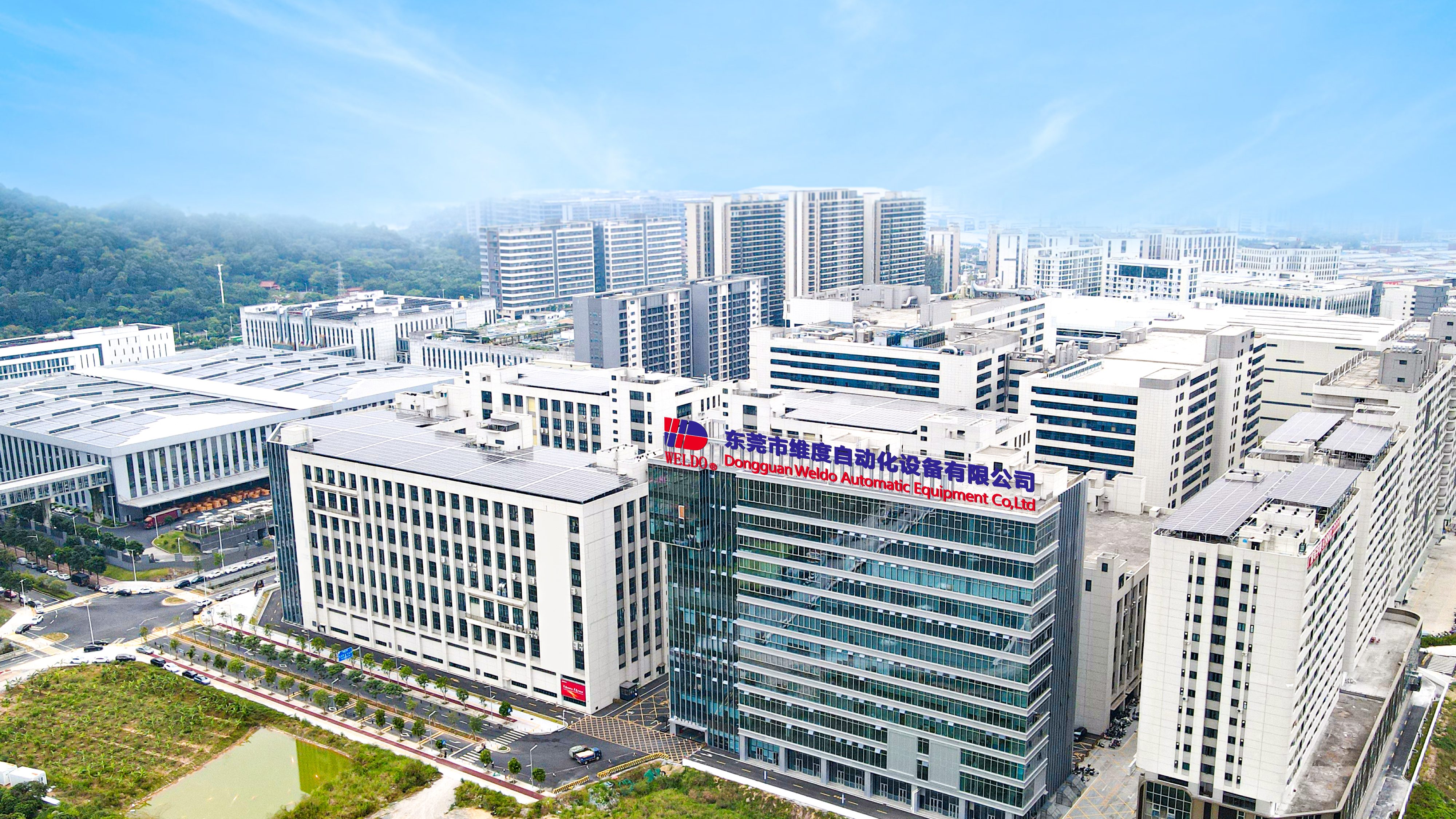

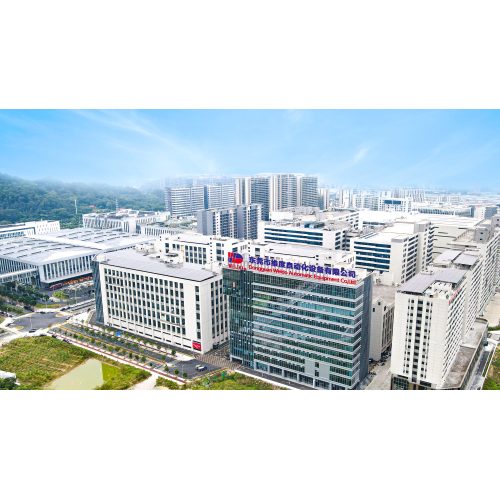

Dongguan Weldo automatic equipment technology co.,Ltd
