Crystal Stone Setting Equipment for Bag Design
Crystal Stone Setting Equipment for Bag Design
Crystal Stone Setting Equipment for Bag Design
Crystal Stone Setting Equipment for Bag Design
Crystal Stone Setting Equipment for Bag Design
Crystal Stone Setting Equipment for Bag Design

Crystal Stone Setting Equipment for Bag Design

Get Latest Price
Payment Type:L/C,T/T
Incoterm:FOB,CFR,CIF,EXW,FAS,FCA
Min. Order:1 Set/Sets
Transportation:Ocean,Land,Air
Port:SHENZHEN,GUANGZHOU
Product Attributes

BrandWELDO

OriginChina-Dongguan

CertificationCE Certificate

Place Of OriginChina

StatusNew

Video Factory InspectionProvided

Mechanical Test ReportProvided

Marketing TypeNew Product 2020

Core Component Warranty Period1 Year

Core ComponentsEngine, Motor, Pump

Warranty Period1 Year

Out-of-warranty ServiceVideo Technical Support, Spare Parts, Field Maintenance And Repair Service

Applicable IndustryMachinery Repair Shops, Manufacturing Plant, Other, Home Use, Garment Shops

Machine Size134*133*205CM

Running DistanceX*600, Y*480, Z*50mm

Worktable Size500*400mm

CCD Resolution4000*3000pi

Max Speedflat : 3 stones/ second

Packaging & Delivery
Selling Units : Set/Sets
Package Type : Standard Export Wooden Case
Picture Example :

The file is encrypted. Please fill in the following information to continue accessing it

Diamond drilling machine for four-leaf clover stone setting
Product Description

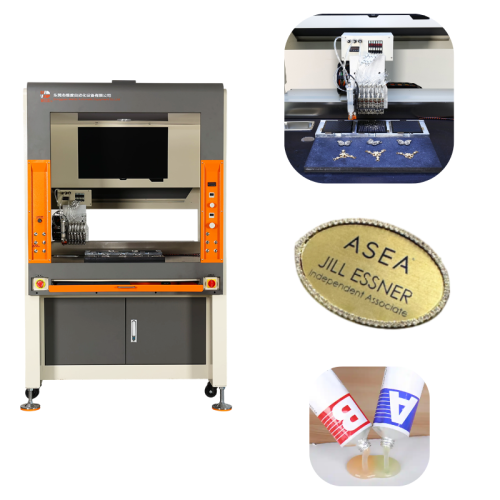

Crystal Stone Setting Equipment for Bag Design

The Crystal Stone Setting Equipment for Bag Design is a specialized machine engineered for the precise application of adhesives and rhinestones on products—such as handbags—that feature metal embellishments.

This Diamond Setting Machine is primarily utilized to accurately position items such as rhinestones and gemstones, enabling the rapid and precise placement of these decorative elements at designated locations on bags. When used in conjunction with epoxy resin, it ensures that the rhinestones are securely and permanently bonded to the product surface.

This automatic stone setting machine is equipped with an auxiliary sorting mechanism for rhinestones; regardless of how haphazardly the stones are scattered, the device can quickly sort them and arrange them neatly onto the placement tray.

This Stone Setting Machine for Jewelry employs high-definition industrial cameras for recognition and positioning. By utilizing both upper and lower cameras to pinpoint the exact locations of the rhinestone tray and the bag itself, the system minimizes the need for manual intervention, adjustments, and repetitive operations—making it particularly well-suited for handbags that incorporate metal accessories.

Jewelry Stone Setting Machine Operation Workflow:
Jewelry Stone Setting Machine Operation Workflow:
The dispensing valve applies the epoxy resin adhesive.
The camera identifies the position of the rhinestones, and the pickup tool retrieves a stone.
The machine precisely places the rhinestone according to a pre-programmed path.
The product is left to rest on a level surface to allow the adhesive to cure.

Technical Parameter
Model: WD600-VDS
Run distance: X:600mm Y:480mm Z:50mm
Worktabel size: 500*400mm
Minimum spray glue amount: 0.001ml
Minimum spray glue time: 3ms
Pick and put precision: 0.01mm
Pick and put speed: 3pcs/s
Position Accuracy:±0.02mm
CCD resolution: 4000*3000pi
Transition: Screw balling and linear
Servo motor:AC servo motor&driver
Input voltage: 220V±10% 50Hz
Machine size:1340(L)*1330(W)*2050(H)mm

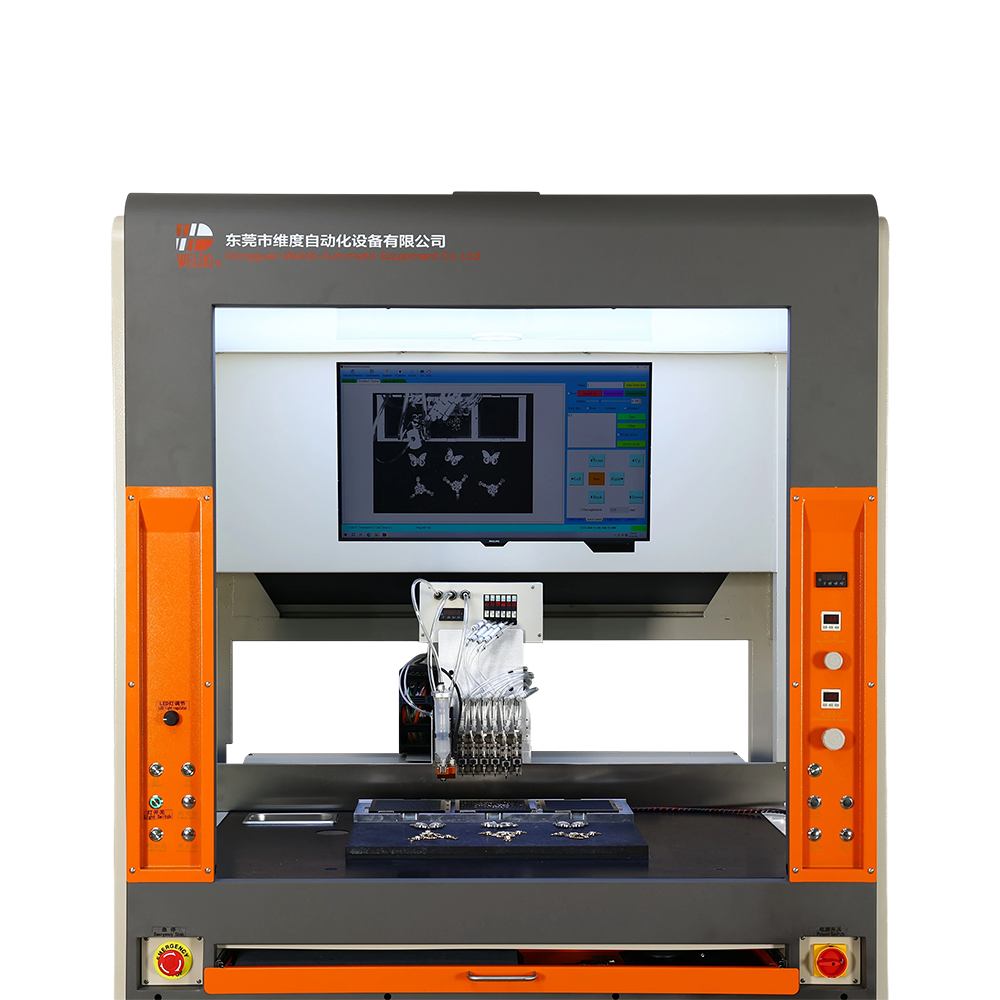

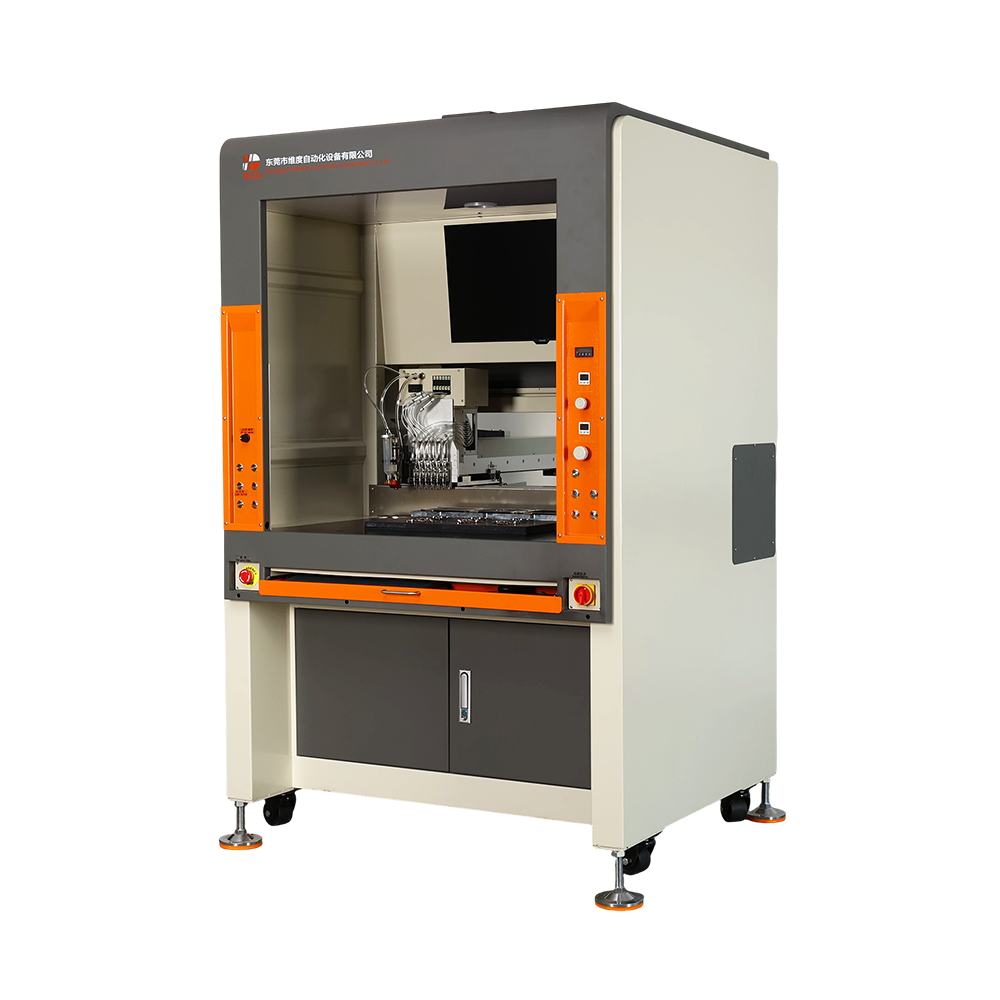

Non-round diamond stone setting machineround diamond stone setting machine
